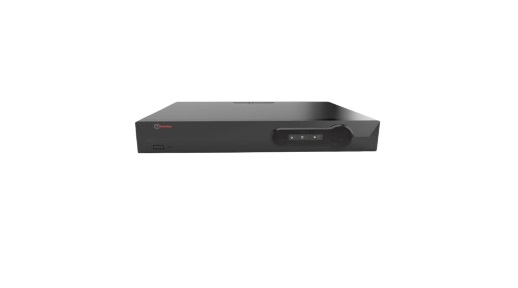

25 CH NVR 2HDD Support Upto 5MP T37555

Availability: In Stock

• 25Ch NVR Support up to 5MP
• HDMI &VGA 1080P output
• Support onvif ,compatible with
camera from other brands
• Max 6TB hardisk each sata
• Compression: H.264/H.264+/H.265/H.265+
• Mobile Software: Truecloud

Category:
Share:
Add to quote
Brands:Trueview
Product code T37555
Processor HI3536C_V102
Operating System Embedded Linux
User Interface GUI
Video Compression H.264/H.26+/H.265/H.265+
Video in 25 CH x 720P or 960P or 1080P, RJ45 interface
HDMI out put 1 CH, HDMI  interface；1920x1080P/60Hz; 4K/30Hz
VGA  out put 1 CH, VGA  interface；1920x1080P/60Hz
Record and Playback 25 CH 2M Recording 4 CH 2M Playback
Resolution 720P, 960P, 1080P Recording
Video Frames PAL: 25 frames per second; NTSC: 30 frames per sec
Video Bitrate 256 Kbps – 2.0Mbps (@ 1080P)
Streaming Type
Audio/Video, Variable Rate(VBR) , Constant Bit Rate(CBR)
Duel stream Support
Audio Compression G.711
SATA 2 SATA
Capacity 6TB at most for each
Backup USB Backup & Internet Backup
Recording Mode Manual, Schelude (Reguler/Continuous), MD,Alarm, Stop
Search Mode Time/Date, Alarm, MD &Exact Search (accurate & Second), Smart Search
Audio Out Support HDMI audio output only
Equipment Control IR remote controller and mouse
Trigger Events Recording, PTZ,Tour,Alarm, Video Push,Email,Buzzer, Snapshot
Network Interface RJ45 10M / 100M , RJ45
Network Users 1 Main user & 2 Sub user
Network Bandwidth 70Mbps
USB Interface 2 USB2.0 （upgrading，backup and mouse）
P2P Support, Android/Iphone/Windows Pc
Compatibility Support N1 & Onvif IPCs
Protocol TCP/IP,HTTP,NTP,DHCP,UDP,SMTP,DDNS,DNS,PPPoE,P2P
Working temperature —10℃—- 55℃
Power Input DC +12 V / 3.5A
Power Consumption 10W (without HDD)
Dimension 320*250*48
Weight Net 1.130KG
Weight Gross 1.530KG

Brand

Trueview
