IPC-HDW2230T-AS-S2

Availability: In Stock

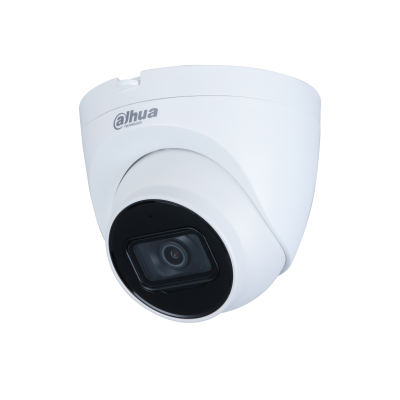

2MP IR Eyeball Network Camera

> 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition

> Outputs 2MP (1920 × 1080)@25/30 fps

> H.265 coding, high compression ration, low bit rate

> Built-in IR LED, max IR distance: 30 m

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments

> Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes

> Intelligent detection: Intrusion, tripwire

> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection

> Supports max. 256 GB Micro SD card and built-in Mic

> 12V DC/PoE power supply

> IP67 protection

Category:
Share:
Add to quote
Brands:DahuaSecurity
Camera
Image Sensor 1/2.7” CMOS
Effective Pixels 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @ F1.6
IR Distance 30 m (98.43 ft) (IR)
IR On/Off Control Auto/Manual
IR LEDs Number 2 (IR LED)
Pan/Tilt/Rotation Range Horizonal: 0°–360°
Vertical: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fix focal
Mount Type M12
Focal Length 2.8 mm
3.6 mm
Max. Aperture F1.6
F1.6
Field of View 2.8 mm :
Horizonal: 110.0°
Vertical: 59.0°
Diagonal: 132.0°
3.6 mm :
Horizonal: 91.0°
Vertical: 48.0°
Diagonal: 109.0°
Iris Type Fixed
Close Focus Distance 2.8 mm: 0.6 m ( 1.97 ft )
3.6 mm: 1.1 m ( 3.61 ft )
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 37.3 m (122.38 ft) 14.9 m

(48.88 ft)

 7.5 m

(24.61 ft)

 3.7 m

(12.14 ft)
3.6 mm 53.3 m (174.87 ft) 21.3 m (96.88 ft) 10.7 m

(35.10 ft)

 5.3 m

(17.39 ft)
Smart event
General IVS Analytics Intrusion; tripwire
Video
Video Compression H.265; H.264; H.264B; MJPEG
Smart Codec H.264: Yes
H.265: Yes
Video Frame Rate 50Hz
Main stream (1920 × 1080@25 fps); sub stream (704 × 576@25 fps)
60Hz
Main stream (1920 × 1080@30 fps); sub stream (704 × 480@30 fps)
Stream Capability Main stream; sub stream
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 ×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 Kbps–6144 Kbps
H.265: 12 Kbps–6144 Kbps
Day/Night ICR switch
BLC Yes
WDR DWDR
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Disable/Enable (4 areas, rectangle)
Region of Interest(RoI) Yes (4 areas)
Smart IR Yes
Image Rotation 0°/90°/180°/270° (Supports 90°/270° with 1080p resolution.)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711A; G.711Mu; G.726; AAC
Network
Network RJ-45 (10/100 Base-T)
Protocol HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP
Interoperability ONVIF (Profile S/Profile G); CGI; Milestone; Genetec
User/Host 20
Edge Storage Dahua Cloud; FTP; Micro SD card (max. 256 GB); NFS
Browser IE
Google
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL: UL60950-1 CAN
Power
Power Supply 12V DC/POE
Power Consumption Basic power consumption: 1.7W (12V DC), 2.1W (POE)
Max power consumption (H.265, Max resolution, Max stream, WDR, IR full intensity, IVS): 5.1W (12V DC), 5.9W (POE)
Environment
Operating Temperature -40°C to +60°C (-40°F to +140°F)
Operating Humidity ≤95%
Storage Temperature -40°C to +60°C (-40°F to +140°F)
Storage Humidity ≤95%
Protection IP67
Structure
Casing Metal + Plastic
Dimensions 100.9 mm × Φ109.9 mm (3.97″ × Φ4.33″)
Net Weight 0.39 kg (0.86 lb)
Gross Weight 0.52 kg (1.15 lb
