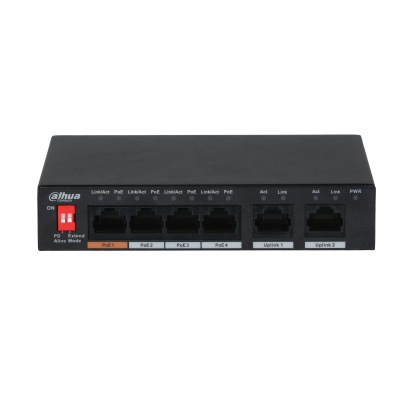

PFS3006-4ET-60

Availability: In Stock

4-Port PoE Switch (Unmanaged)

> Layer two commercial switch
> Supports PoE power management
> Supports wall-mount installation
> Supports anti-theft lock hole
> MAC auto learning and aging, MAC address capacity is 2K
> Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
> RJ45 port supports 10/100 Mbps self-adaptation
> Supports 250 meters long distance PoE transmission
> Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
Category:
Share:
Add to quote
Brands:DahuaSecurity
Technical Specification
Model PFS3006-4ET-60
Ethernet Port 2*10/100Mbps Uplink ports

4*10/100 Mbps PoE ports
PoE Power Consumption Port1≤60W, Port2-4≤30W, Total≤60W
PoE Protocol IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity 1.8Gbps
Packet Forwarding Rate 890kpps
Packet Buffer Memory 768Kb
MAC Table Size 2K
Flow Control Enable by default
Application Humidity 10%~90%
Power DC48~57V power adapter
Lightning Protection Common Mode 2KV

Differential Mode 0.5KV
Working Temperature -10°C~+55°C
Weight 0.3kg
Dimension(W×D×H) 130mm×85mm×26mm

Brand

DahuaSecurity
