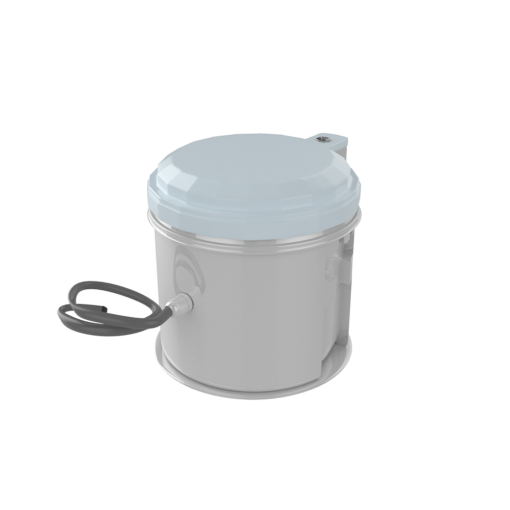

SN-MW759

Availability: In Stock

SN-MW759 microwave motion sensor, a new energy-saving switch, adopts a microwave sensor with high-frequency electromagnetic waves (5.8 GHz) and an integrated circuit. It gathers automatism, convenience, safety, energy-saving, and practical functions. The wide/detection field depends upon the detectors. When one enters the detection field, it can start the load at once and automatically identifies day and night. The installation of this product is very convenient, and it can be used for a wide range of applications. It can be detected easily through doors, glass panes, or even thin walls, making it ultra-reliable as there are no gaps in the detection zone.

Category:
Share:
Brands:Sensinova
Power Source 120-277V AC
Power Frequency 50/60Hz
Detection Angle  360°
Detection Range 50%, 100%(choice)
Daylight sensor 2lux, 10lux, 50lux, 2000lux (choice)
Stand by period 10s,1min, 5min, 10min, 30min, 60min,+ Infinity (add symbol) Choice
Rated Load 1200Watts (220/270V AC), 800W (120V/AC,800W 220/270V AC, 400W
Stand by dim level 10%, 20%, 30%,50% choice
HF System 5.8GHz CW radar, ISM band
Detection Distance 10m (radius), Transmission Power
Transmission Power <0.2mW
Power Consumption approx 0.9W
Install Height 4-15m
Power Consumption Approx 0.9W
Detection Motion Speed 0.6-1.5m/s
